Characteristics
We can get more favorable convenience and cost down by using the PTC Taper Grid Steel Flexible Coupling.
PARALLEL
The movement of the grid in the lubricated grooves accom-modates parallel misalign-ment and steel permits
full function-ing of the grid-groove action in damping out shock and vibration.
ANGULAR
Under angular misalignment, the gridgroove design permits a rocking and sliding action of the lubricated grid
and hubs without any loss of power through the resilient grid.
END FLOAT
Limited end float of driving and driven members is permitted because the grid slides freely in the lubricated
grooves.
TORSIONAL FLEXIBILITY
Torsional flexibility is the advantage of PTC Taper Grid Couplings, providing flexible accommodation to changing
load conditions

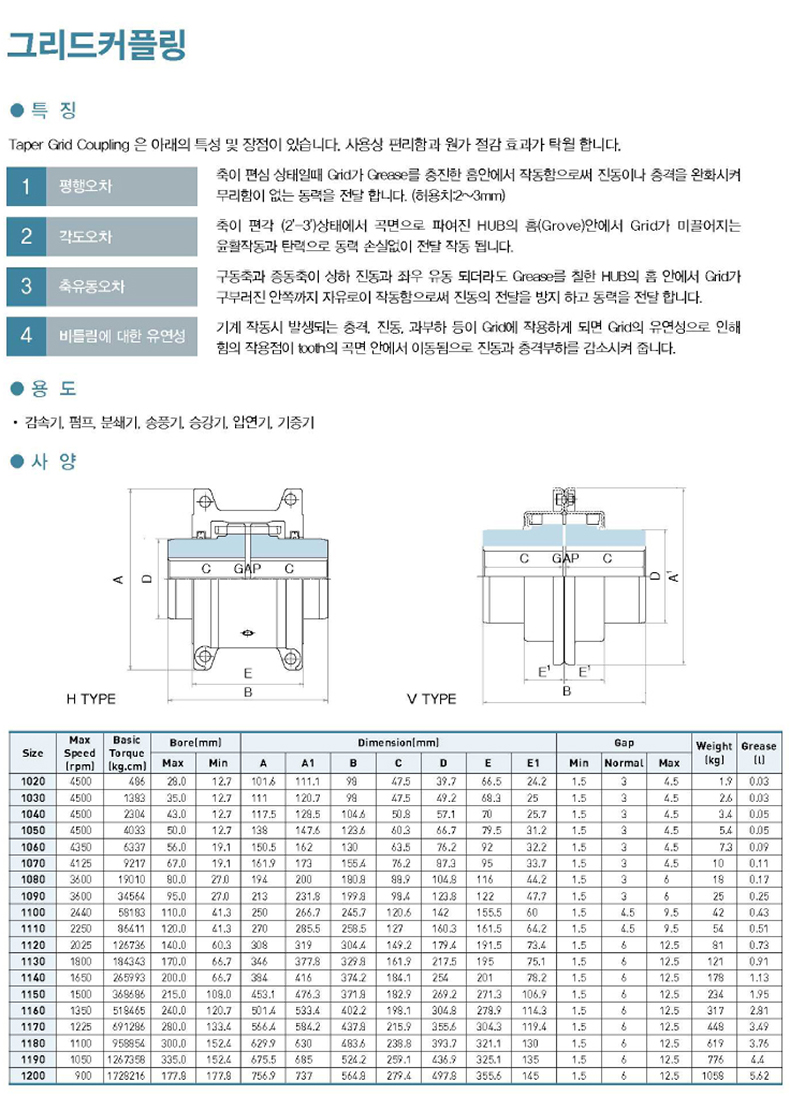

DimensionsType H (Horizontal Split Aluminum Cover)
